Multiplex boor 3xd

Hartner Multiplex Wisselplaatboren 3xD met binnenkoeling

Cilindrische schacht, met weldon opname

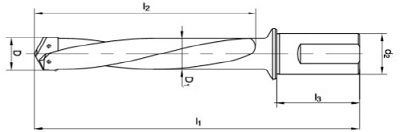

  Afmetingen
Artikelnummer Boor bereik D d2 l1 l2 l3 D1 Prijs
86612 09,500
10,0-11,5 20 107 50 40 9.5 321.85
86612 11,500
12,0-13,0 20 109 53 40 11,5 321.85
86612 13,000
13,5-16,0 20 116 60 40 13,0 354.42
86612 16,000
16,5-18,5 20 118 65 40 16,0 354.42
86612 18,500
19,0-22,0 20 124 73 40 18,5 386.87
86612 22,000
22,5-25,0 20 127 78 60 22,0 386.87
86612 24,000
25,5-29,0 32 178 105 60 24,0 460.62
86612 28,000
29,5-35,0 32 178 108 60 28,0 460.62
86612 34,000
35,5-45,0 32 223 152 60 34,0 593.59
86612 44,000
45,5-55,0 40 233 152 70 44,0 614.28
86612 54,000
55,5-65,0 40 233 152 70 54,0 654.46

Materiaal
