Multiplex boor 5xD

Hartner Multiplex Wisselplaatboren 5xD met binnenkoeling

Cilindrische schacht, met weldon opname

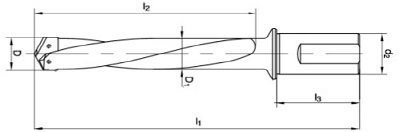

  Afmetingen
Artikelnummer Boor bereik D d2 l1 l2 l3 D1 Prijs
86622 09,500
10,0-11,5 20 140 83 70 9.5 267.41
86622 11,500
12,0-13,0 20 150 94 40 11,5 267.41
86622 13,000
13,5-16,0 20 160 104 40 13,0 307.31
86622 16,000
16,5-18,5 20 170 117 40 16,0 307.31
86622 18,500
19,0-22,0 20 180 129 40 18,5 307.31
86622 22,000
22,5-25,0 32 180 131 60 22,0 307.31
86622 24,000
25,5-29,0 32 240 166 60 24,00 328.34
86622 28,000
29,5-35,0 32 240 170 60 28,0 389.35
86622 34,000
35,5-45,0 32 280 210 60 34,0 429.25
86622 44,000
45,5-55,0 40 290 210 70 44,0 456.07
86622 54,000
55,5-65,0 40 290 210 70 54,0 489.33

Materiaal
