T1 Boorbeitel
VHM boorbeitel
|
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

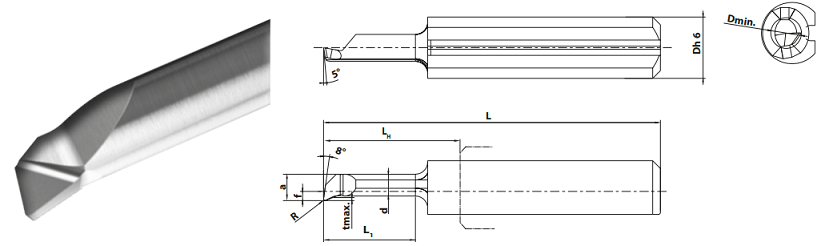

Afmetingen | |||||||||||
Artikelnummer | Dh6 | D min | L1 | LH | L | R | tmax | a | d | f | Prijs |
T1.4.10.04.008R |
4 | 1 | 4 | 6 | 20 | 0.08 | 0.1 | 0.9 | 0.7 | 0.6 | € 28.16 |
T1.4.10.06.008R |
4 | 1 | 4 | 8 | 22 | 0.08 | 0.1 | 0.9 | 0.7 | 0.6 | € 28.85 |
T1.4.10.08.008R |
4 | 1 | 8 | 10 | 24 | 0.08 | 0.1 | 0.9 | 0.7 | 0.6 | € 29.35 |
T1.4.20.06.010R |
4 | 2 | 6 | 8 | 22 | 0.10 | 0.2 | 1.7 | 1.4 | 0.6 | € 27.60 |
T1.4.20.11.010R |
4 | 2 | 11 | 13 | 27 | 0.10 | 0.2 | 1.7 | 1.4 | 0.6 | € 28.60 |
T1.4.30.11.015R |
4 | 3 | 11 | 13 | 27 | 0.15 | 0.25 | 2.75 | 2.4 | 0.75 | € 28.22 |
T1.4.30.16.015R |
4 | 3 | 16 | 18 | 32 | 0.15 | 0.25 | 2.75 | 2.4 | 0.75 | € 29.49 |
T1.4.30.20.015R |
4 | 3 | 21 | 23 | 37 | 0.15 | 0.25 | 2.75 | 2.4 | 0.75 | € 32.56 |
T1.4.40.11.005R |
4 | 4 | 11 | 13 | 27 | 0.05 | 0.3 | 3.7 | 3.3 | 1.7 | € 29.35 |
T1.4.40.16.005R |
4 | 4 | 16 | 18 | 32 | 0.05 | 0.3 | 3.7 | 3.3 | 1.7 | € 30.80 |
T1.4.40.21.005R |
4 | 4 | 21 | 23 | 37 | 0.05 | 0.3 | 3.7 | 3.3 | 1.7 | € 34.02 |
T1.4.40.11.020R |
4,0 | 4 | 11 | 13 | 27 | 0.2 | 0.3 | 3.7 | 3.3 | 1.7 | € 28.22 |
T1.4.40.16.020R |
4 | 4 | 16 | 18 | 32 | 0.2 | 0.3 | 3.7 | 3.3 | 1.7 | € 29.48 |
T1.4.40.21.020R |
4 | 4 | 21 | 23 | 37 | 0.2 | 0.3 | 3.7 | 3.3 | 1.7 | € 32.56 |
T1.5.50.11.020R |
5 | 5 | 11 | 13 | 27 | 0.2 | 0.5 | 4.6 | 4 | 2.1 | € 26.52 |
T1.5.50.16.020R |
5 | 5 | 16 | 18 | 32 | 0.2 | 0.5 | 4.6 | 4 | 2.1 | € 27.84 |
T1.5.50.21.020R |
5 | 5 | 21 | 23 | 37 | 0.2 | 0.5 | 4.6 | 4 | 2.1 | € 30.85 |
T1.5.50.31.020R |
5 | 5 | 31 | 33 | 47 | 0.2 | 0.5 | 4.6 | 4 | 2.1 | € 37.74 |
T1.6.60.16.020R |
6 | 6 | 16 | 18 | 32 | 0.2 | 0.5 | 5.6 | 5 | 2.6 | € 27.85 |
T1.6.60.21.020R |
6 | 6 | 21 | 23 | 37 | 0.2 | 0.5 | 5.6 | 5 | 2.6 | € 30.85 |
T1.6.60.26.020R |
6 | 6 | 26 | 28 | 42 | 0.2 | 0.5 | 5.6 | 5 | 2.6 | € 33.94 |
T1.6.60.36.020R |
6 | 6 | 36 | 38 | 52 | 0.2 | 0.5 | 5.6 | 5 | 2.6 | € 41.52 |
T1.7.68.21.020R |
7 | 6.8 | 21 | 23 | 37 | 0.2 | 0.5 | 6.3 | 5.7 | 2.8 | € 32.64 |
T1.7.68.26.020R |
7 | 6.8 | 26 | 28 | 42 | 0.2 | 0.5 | 6.3 | 5.7 | 2.8 | € 33.94 |
T1.7.68.31.020R |
7 | 6.8 | 31 | 33 | 47 | 0.2 | 0.5 | 6.3 | 5.7 | 2.8 | € 39.52 |
T1.7.68.41.020R |
7 | 6.8 | 41 | 43 | 57 | 0.2 | 0.5 | 6.3 | 5.7 | 2.8 | € 46.95 |
Materiaal |
---|
